Stude Type Cam Follower Bearing from China manufacturer

Price:	0.1~2.0 USD
Payment Terms:	T/T,D/A,D/P
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean,Land,Air

Packing: According to customers requ...

Brand Name: Bmt

Bore Size: 5 - 100 mm

Model Number: P0

Number of Row: Single Row

Samples: Available

Production Capacity: 2,000,000 Set/Sets / Month

Delivery Date: 30-35 days after order conf...

Type: Needle

Outside Diameter: 15 - 150 mm

Seals Type: SEALED

Cetifiaction: ISO9001:2000

Material: GCr15

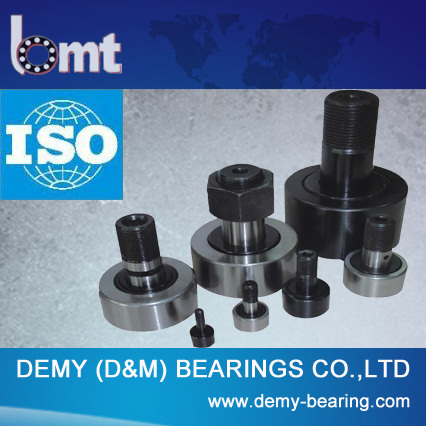

Cam Follower Bearing
1) Metric size and inch size
2) Large range
3) Good quality and comptitive price

What are Cam Follower Bearings

Cam Follower Bearings are also referred to as track follower. They are designed to follow a sliding or rotating piece (cam) and they use rollers or needles as the rolling elements. Cam Follower Bearings are therefore able to replicate a specific motion because they are highly versatile. They have thick-walled outer rings that run on a track. They are used to minimize distortion and bending stress while facilitating high load carrying capacity.

Generally speaking, cam follower bearings are designed in different configurations and special structures can be designed according to the task requirements. They may either be of two styles:

Stud Style

Stud style cam follower bearing has one end plate integrated into the inner race (stud) and the other pressed onto the stud unto a shoulder on the inner race. Both ends of the stud have holes for lubrication and the inner race is induction hardened to maintain some degree of softness in case some modification is required.

Yoke style

The end plates of yoke style cam follower bearings are pressed or liquid metal injected onto the inner race. The inner race may either be through hardened or induction hardened. Yoke style is suitable for applications that exceed the capabilities of the stud type due to exceeding loading conditions. They are suitable for applications that require minimum deflection.

Structure of cam follower bearings

The cam follower has an outer race which is loaded to a single point. In order to reduce deformation, the outer race has a thick cross section and the roller diameter is decreased.

Stud style may have a standard stud or heavy stud depending on the required static load capacity.

The materials used in their manufacture are:

Needle roller: Gcr15, quench-hardening HRC60-65

Rings:Gcr15

Cage:Low-carbon steel or reinforced nylon

Both the stud and yoke cam followers have an outer diameter that may either be cylindrical or crowned. The crowned. The crowned ones are often used in turntable type applications because they help reduce skidding.

Application

Cam Follower Bearings are suitable for applications that involve high radial loads and certain shock loads. They are widely used in machine tools, metallurgy, textile and printing machinery, pressing lines, indexing equipment, ram support rollers, material handing, motor vehicles, pumping devices, etc.

Product series

Manufacturers abroad			IKO	INA/SKF	Mc.GILL	NSK
With cage	Cylindrical Roller Dia.	UNSEALED	NART	NATR..X	MCYRR..X	FY, CJ
	Cylindrical Roller Dia.	SEALED	NART..UU	NATR..PPX	MCYRR..SX	FYCJS
	Crowned Roller Dia.	UNSEALED	NART..R	NATR	MCYRR	FYCJ..R
	Crowned Roller Dia.	SEALED	NART..UUR	NATR..PP	MCYRR..S	FYCJS..R
Without cage	Cylindrical Roller Dia.	UNSEALED	NART..V	NATV..X	MCYR..X	FYCR
	Cylindrical Roller Dia.	SEALED	NART..VUU	NATV..PPX	MCYR..SX	FYCRS
	Crowned Roller Dia.	UNSEALED	NART..VR	NATV	MCYR	FYCR..R
	Crowned Roller Dia.	SEALED	NART..VUUR	NATV..PP	MCYR..S	FYCRS..R

Our Factory

Ningbo Demy (D&M) Bearings Co., Ltd. is a leading manufacturer of ball & roller bearings and exporter of belts, chains and auto parts in China. We specialize in research and development of various kinds of high precision, non-noise, long-life bearings, high quality chains, belts, auto parts and other machinery & transmission products.
